Connectivity Methods

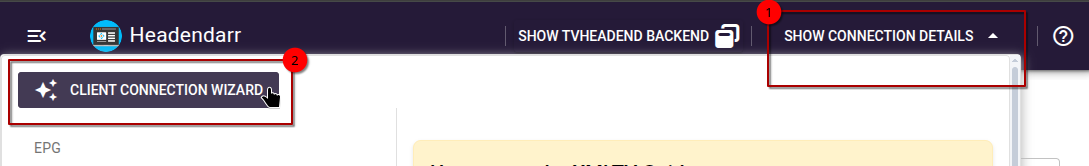

:::tip Accessing Client Links Open Show connection details from the header in the Headendarr frontend, then use the Client Connection Wizard button. The wizard guides you through the best-recommended connection options for your selected client.
You can still copy playlist, HDHomeRun, XMLTV, XC, or TVHeadend endpoint details directly from the same panel for manual setup.
:::
Headendarr is a powerful "man-in-the-middle", and it offers several ways for client applications to access your curated channel list. The best method depends on the client you are using and the features you need.
Method 1: TVHeadend HTSP (Recommended)
Connecting directly to the integrated TVHeadend server via HTSP (Home TV Streaming Protocol) is the most robust and feature-rich method. It provides a native PVR experience and is the only method that supports server-side timeshifting.
| Supported Features | |
|---|---|
| EPG / Guide | ✅ Full and automatic |
| Channel Logos | ✅ Yes |
| Picon Support | ✅ Yes (via TVHeadend configuration) |
| DVR | ✅ Full scheduling and management |
| Timeshift | ✅ Server-Side |
| Connection Limits | ✅ Yes (Enforced by TVHeadend) |
| Stability | Excellent |
Recommended Clients
- Android TV:
- Sparkle TV / PVR Live: Excellent, modern apps that integrate directly with the Android TV "Live Channels" feature for a seamless "cable TV" experience.
- Kodi: The classic media centre with the "TVHeadend HTSP Client" addon.
- Android Mobile:
- TVHClient: A great app for mobile devices to stream from and manage your TVHeadend server.
- Desktop:
- Kodi: The desktop version provides the same great experience.
Connection Details
Headendarr automatically creates users in the TVHeadend backend. To connect your HTSP client, use the following credentials:
- TVHeadend Hostname/IP: The IP address of your Docker host.
- HTSP Port:
9982 - Username: Your username in Headendarr.
- Password: Your Streaming Key from the Headendarr Users page.
Your main Headendarr password is only for logging into the web interface. Your Streaming Key is the password for all client applications (HTSP, XC API, etc.).
Method 2: Combined Playlist
This method provides a single M3U playlist and XMLTV URL containing all mapped channels.
| Supported Features | |
|---|---|
| EPG / Guide | ✅ Manual URL entry required |
| Channel Logos | ✅ Yes (Headendarr-managed and cached) |
| DVR | ❌ Not supported (client must have its own DVR) |
| Timeshift | ❌ Not supported (client must have its own Timeshift) |
| Connection Limits | ❌ No |
| Stability | Good (can depend on the client) |
Recommended Clients
- TiviMate: A popular and highly customizable IPTV client for Android TV.
- VLC: A simple way to test streams on a desktop.
- Jellyfin: Fallback option when not using per-source HDHomeRun via TVHeadend or the Jellyfin TVHeadend plugin.
- Any client that does not support adding multiple M3U playlists as separate sources.
Connection Details
- Combined Playlist URL:
http://<your-ip>:9985/tic-api/playlist/combined.m3u?stream_key=<user_stream_key> - XMLTV EPG URL:
http://<your-ip>:9985/tic-api/epg/xmltv.xml?stream_key=<user_stream_key> - Optional profile override: append
&profile=<profile_id>(example:profile=h264-aac-mpegts).
Method 3: Per-Source M3U Playlists
This method generates a unique M3U playlist for each of your channel sources. Its primary advantage is that it allows Headendarr to properly enforce the connection limits you have set for each source.
| Supported Features | |
|---|---|
| EPG / Guide | ✅ Manual URL entry required |
| Channel Logos | ✅ Yes (Headendarr-managed and cached) |
| DVR | ❌ Not supported (client must have its own DVR) |
| Timeshift | ❌ Not supported (client must have its own Timeshift) |
| Connection Limits | ✅ Yes |
| Stability | Good (can depend on the client) |
Recommended Clients
- Emby: By adding each per-source playlist as a separate tuner, you can ensure you don't exceed connection limits from any single provider.
- Any client that supports adding multiple M3U playlists.
:::note Jellyfin note For Jellyfin, per-source M3U tuners can produce duplicate channels when the same lineup exists across multiple playlists. Prefer per-source HDHomeRun via TVHeadend first, then the Jellyfin TVHeadend plugin, then one combined M3U tuner (Method 2). Reference: Jellyfin issue #632. :::
Connection Details
:::tip Easy Copy Use the Client Connection Wizard in the Show connection details dropdown for guided client-specific recommendations.
:::
- Per-Source M3U URL:
http://<your-ip>:9985/tic-api/playlist/<source_id>.m3u?stream_key=<user_stream_key> - Optional profile override: append
&profile=<profile_id>.
You can find the <source_id> by navigating to the Sources page in Headendarr and viewing the ID column.
Method 4: HDHomeRun Emulation
Headendarr can pretend to be an HDHomeRun network tuner. This is an excellent method for integrating IPTV into DVR software that has native support for HDHomeRun devices. This method also enforces connection limits.
| Supported Features | |
|---|---|
| EPG / Guide | ✅ Automatic via discovery |
| Channel Logos | ✅ Yes (Headendarr-managed and cached) |
| DVR | ❌ Not supported (managed by client, e.g., Plex) |
| Timeshift | ❌ Not supported (managed by client, e.g., Plex) |
| Connection Limits | ✅ Yes |
| Stability | Excellent |
Recommended Clients
- Plex: The primary choice for HDHomeRun emulation for its Live TV & DVR feature.
- Emby / Jellyfin: Both can also discover and use HDHomeRun tuners.
- Channels DVR: A premium DVR service that works well with HDHomeRun tuners.
How It Works
:::tip Easy Copy Use the Client Connection Wizard in the Show connection details dropdown for guided client-specific recommendations.
:::
For clients like Plex, the most reliable way to add the emulated tuner is to do it manually by providing its network address.
While some clients may support auto-discovery, this can be unreliable in Docker environments. Manually adding the tuner ensures the client can find it. Provide the following URL to your client when it asks for a tuner's address:
- Combined HDHomeRun Device URL:
http://<your-ip>:9985/tic-api/hdhr_device/<user_stream_key>/combined - Combined HDHomeRun Device URL (fixed profile):
http://<your-ip>:9985/tic-api/hdhr_device/<user_stream_key>/combined/<profile> - HDHomeRun Device URL:
http://<your-ip>:9985/tic-api/hdhr_device/<user_stream_key>/<source_id>
Use the combined URL when you want one tuner endpoint that includes all channels. Use the per-source URL when you want source-specific connection-limit behavior.
Use the profile-scoped combined URL when your client (for example Plex) does not support selecting a stream profile in HDHR requests and you want to force a profile such as matroska.
You can find the <source_id> by going to the Sources page and viewing the ID column. Your client will use the selected base URL to discover device.xml, lineup.json, and other required endpoints.
Method 5: Xtream Codes (XC) API
For clients designed for Xtream Codes, Headendarr provides a compatibility layer.
| Supported Features | |
|---|---|
| EPG / Guide | ✅ Automatic |
| Channel Logos | ✅ Yes (Headendarr-managed and cached) |
| DVR | ❌ Not supported (client may have its own) |
| Timeshift | ❌ Not supported (client must have its own Timeshift) |
| Connection Limits | ❌ No |
| Stability | Good |
Recommended Clients
- TiviMate: Supports XC login natively and is a popular choice.
- IPTV Smarters Pro and similar apps.
Connection Details
- Server URL / Host:
http://<your-ip>:9985 - Username: Your username in Headendarr.
- Password: Your Streaming Key from the Headendarr Users page.
Compatibility routes:
http://<your-ip>:9985/get.php?username=<username>&password=<stream_key>http://<your-ip>:9985/xmltv.php?username=<username>&password=<stream_key>
These map to the same data as /tic-api/playlist/combined.m3u and /tic-api/epg/xmltv.xml.
Security Warning
It is strongly recommended that you only expose the Headendarr Web UI (9985) to the internet. These endpoints are secured with strict authentication.
Do not expose the TVHeadend UI (9981) or HTSP port (9982) directly to the internet. Doing so can be a significant security risk. If you need remote access, consider using a VPN like Tailscale to connect to your home network.
