Jellyfin

Use this guide to connect Jellyfin Live TV and curated VOD to Headendarr.

:::warning Jellyfin stream compatibility Jellyfin Live TV does not reliably accept HLS input in this setup. Prefer MPEG-TS based streams.

Recommended profile order for Jellyfin:

1. aac-mpegts (preferred default)
2. mpegts
3. matroska (use carefully; aac-matroska is usually safer than plain matroska) :::

Option #1 (recommended): Jellyfin TVHeadend plugin

If you use the Jellyfin TVHeadend plugin, Jellyfin connects directly to the TVHeadend backend (not Headendarr playlist endpoints).

This is the recommended default if you want the most reliable live TV connection handling in Jellyfin today.

It also brings two practical benefits:

• Jellyfin can use TVHeadend's DVR workflow for recordings.
• If you already use TVHeadend for other clients, Jellyfin joins that same backend model instead of creating a separate direct-play path.

:::warning Plugin trade-offs This plugin path is valid, but it has known downsides in some environments:

• Plugin compatibility can lag behind Jellyfin releases.
• It can force transcoding in cases where direct stream paths would not, so this path is not always the most efficient one.
• Channel tune/start can be slower than direct playlist paths.

:::

Steps

1. Install the TVHeadend plugin in Jellyfin (if not already installed).
2. Ensure Jellyfin can reach TVHeadend on port 9981.
3. In Headendarr Users, create a dedicated streaming-only user for Jellyfin.

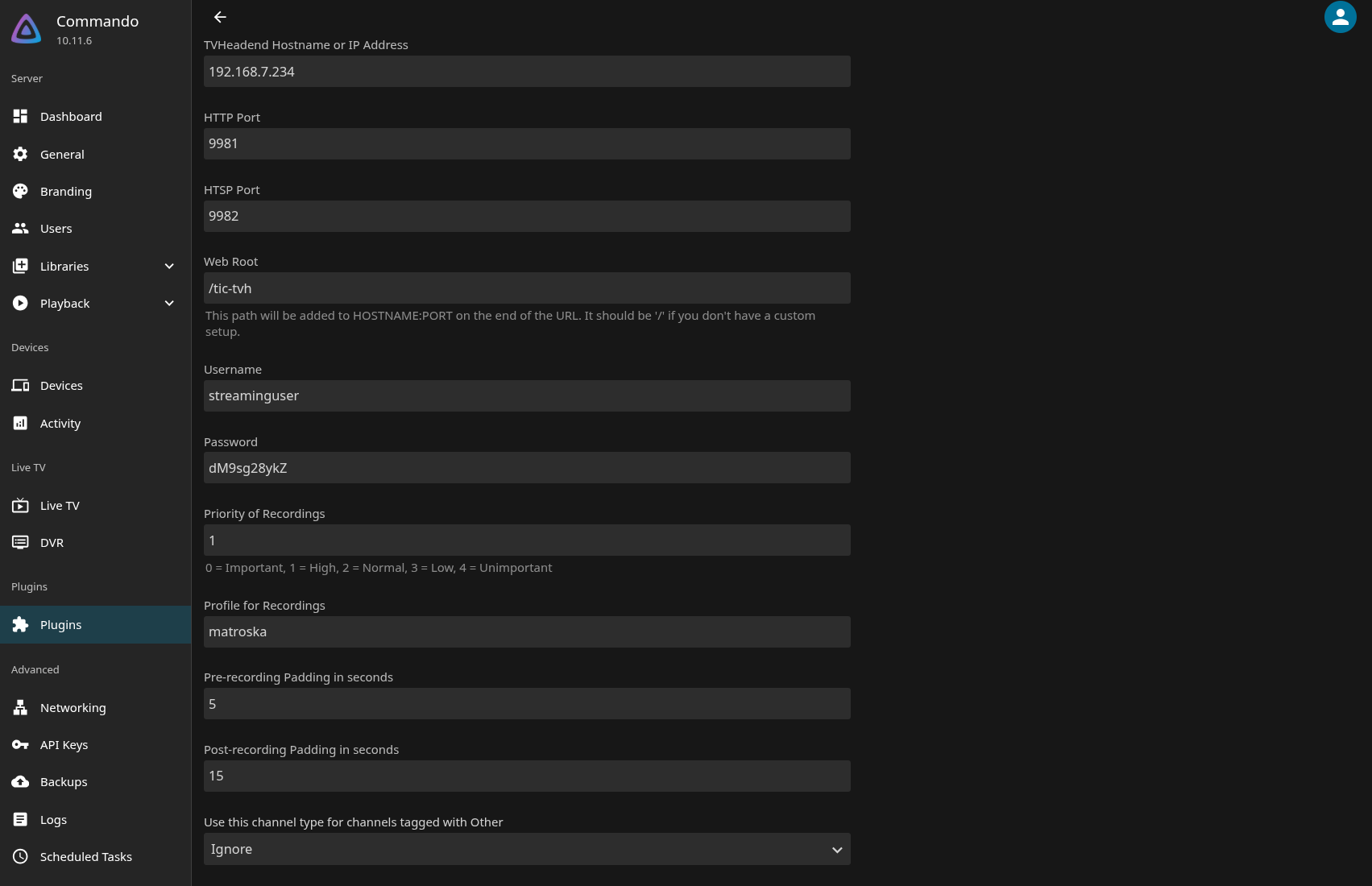

4. Configure the plugin with:
   1. TVHeadend Hostname or IP Address
   2. Web Root
   3. Username
   4. Password (use the user's streaming key)

5. Save
6. Navigate to the Live TV settings page in Jellyfin and click "Refresh Guide Data".

Plugin references:

• Jellyfin TVHeadend plugin source: github.com/jellyfin/jellyfin-plugin-tvheadend
• Jellyfin TVHeadend plugin docs: jellyfin.org/docs/general/server/plugins/tvheadend

Option #2: Per-source HDHomeRun via TVHeadend

This is a valid option if you want tuner-device behaviour and per-source connection-limit behaviour in Jellyfin.

Choose this option if you specifically want HDHomeRun-style tuner behaviour in Jellyfin and want each source to retain its own connection-limit behaviour.

:::warning Issue with Jellyfin client behaviour Some Jellyfin client paths can keep HDHomeRun-style shared streams open after playback appears to stop. In practice this means stream slots can remain occupied longer than expected, which can affect connection limits.

This behaviour has been discussed in:

• GitHub Issue - '10.11.4 HDHomeRun tuner locking': jellyfin/jellyfin#15769

In testing, web playback (for example Chrome/web player) can behave better than some app clients. :::

Steps

1. In Headendarr Application Settings, enable Route per-source playlists & per-source HDHomeRun via TVHeadend.
2. In Headendarr TVHeadend Settings, set Stream Buffer to CSO.

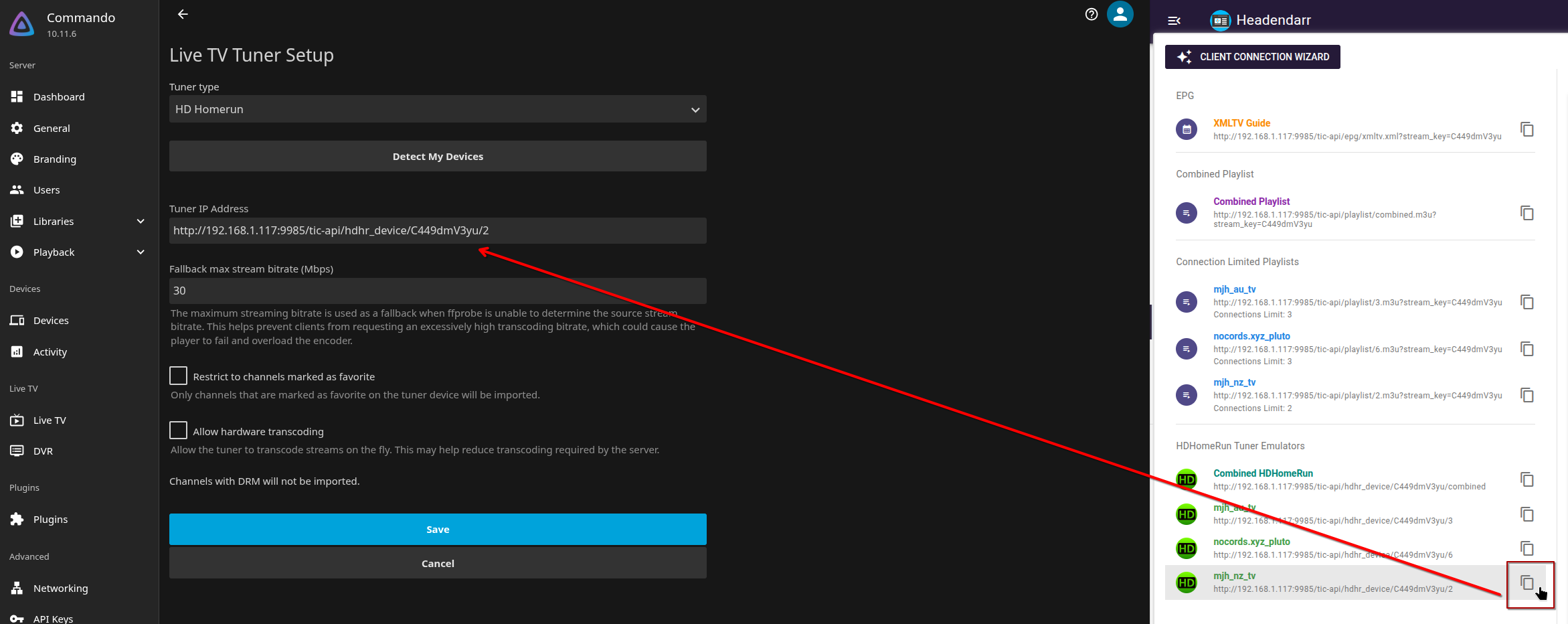

3. In Jellyfin's Live TV settings page, click Add tuner device and complete these steps:
   1. On the next page, select HD Homerun as the tuner type.
   2. Copy the tuner URL from HDHomeRun Tuner Emulators in Show connection details and paste it into the Tuner IP Address field.
   3. Click Save.

4. In Jellyfin's Live TV settings page, click Add provider and select XMLTV.

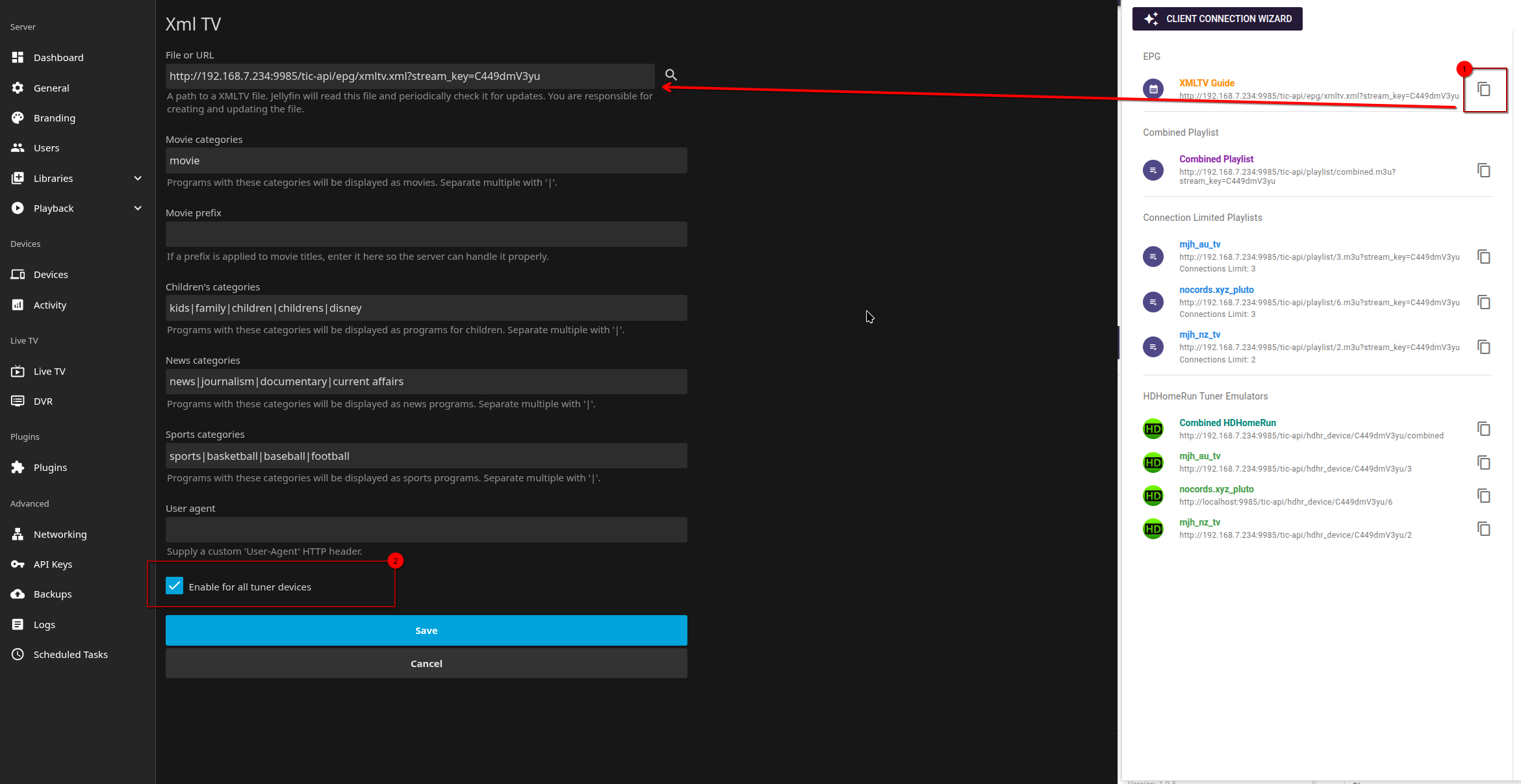

5. In the XMLTV provider dialog, complete these steps before clicking Save:
   1. Copy the XMLTV Guide URL from Show connection details and paste it into Jellyfin.
   2. Ensure Enable for all tuner devices is selected.

Option #3: Combined M3U playlist

Multiple per-source M3U tuners can cause duplicate channels in Jellyfin (Jellyfin issue #632). Using one combined M3U tuner avoids that duplication pattern.

Choose this option if you want the simplest direct Jellyfin setup and are happy to use one shared playlist instead of tuner-device behaviour.

:::note Duplicates with multiple M3U tuners With multiple M3U tuner entries, Jellyfin treats playlist entries as channel records. Matching channels across separate playlists are usually shown as duplicates.

To avoid this, it is recommended to use one combined M3U tuner in Jellyfin instead of multiple per-source M3U tuners.

Reference: Jellyfin issue #632. :::

Steps

1. In Headendarr, open Show connection details.

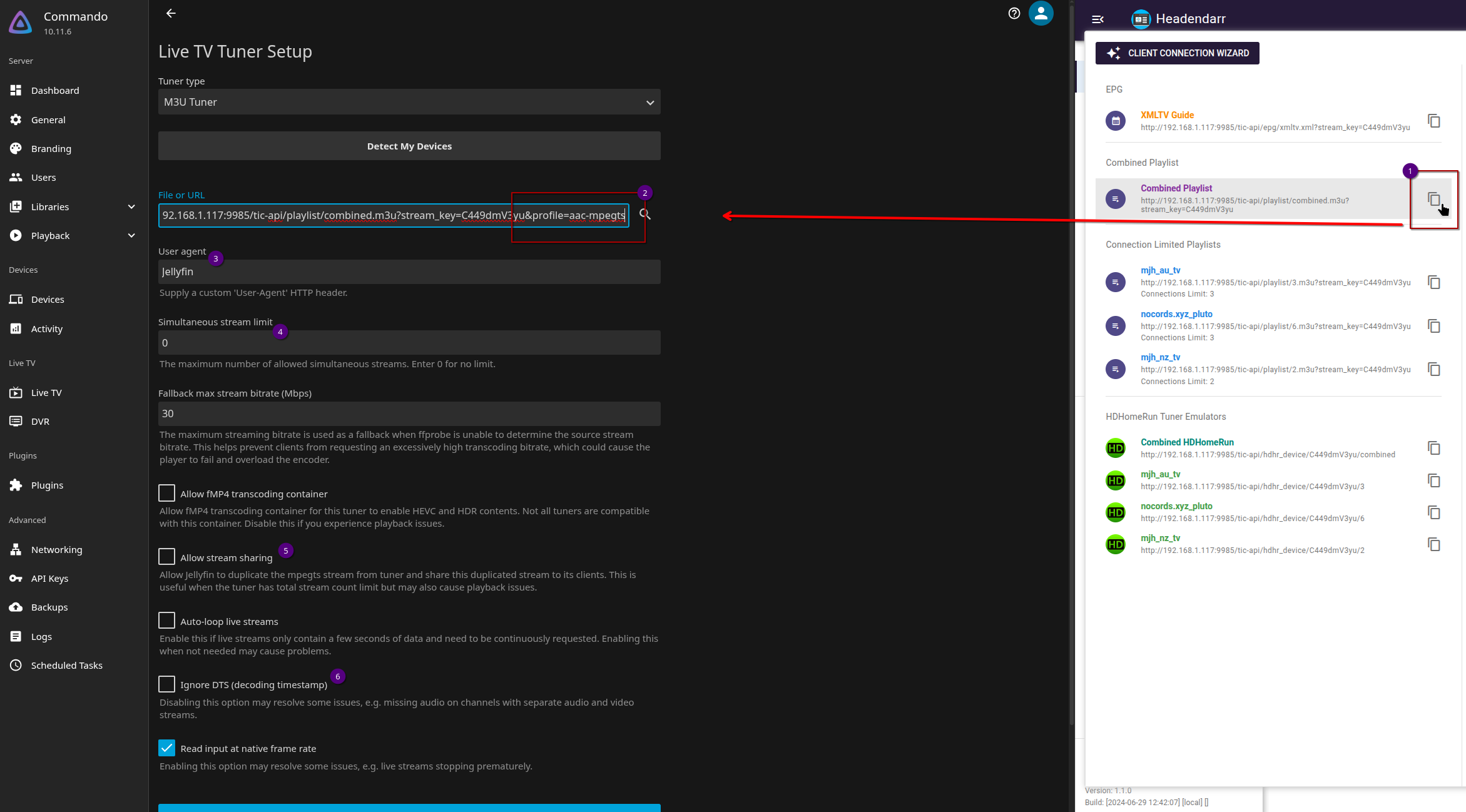

2. In Jellyfin's Live TV settings page, click Add tuner device and complete these steps:
   1. On the next page, select M3U Tuner as the tuner type.
   2. Copy the tuner URL from Combined Playlist in Show connection details and paste it into the File URL field.
   3. Append your desired profile argument, for example &profile=aac-mpegts.
   4. Set User Agent to Jellyfin.
   5. Set Simultaneous stream limit for that source.
   6. Disable Allow stream sharing.
   7. Disable Ignore DTS (decoding timestamp).
   8. Click Save.

4. In Jellyfin's Live TV settings page, click Add provider and select XMLTV.
5. In the XMLTV provider dialog, complete these steps before clicking Save:
   1. Copy the XMLTV Guide URL from Show connection details and paste it into Jellyfin.
   2. Ensure Enable for all tuner devices is selected.

6. Run channel/guide mapping and test playback.

Video On Demand (VOD)

This is the best option if you want Jellyfin to access the curated VOD as a normal media library.

With this approach, Headendarr generates .strm files and NFO metadata under the library export path, and Jellyfin scans those directories as movie and TV libraries.

The result feels much closer to a normal Jellyfin library than an IPTV catalogue. Users can browse curated films and shows with regular posters, metadata, seasons, and episode structure inside the standard Jellyfin interface.

How it works

By default, Headendarr writes exports under:

/library

The generated structure is user-specific and grouped by content type and category slug:

• Movies:
  • /library/<username>/Movies/<category-slug>/
• Shows:
  • /library/<username>/Shows/<category-slug>/

Examples:

• /library/myuser/Movies/curated-movies/
• /library/myuser/Shows/curated-shows/

Within those category folders, Headendarr writes scraper-friendly directory structures such as:

• movie folder:
  • Tenet (2020)/Tenet (2020).strm
• show folder:
  • 3 Body Problem (2024)/Season 01/3 Body Problem S01E01.strm

If Headendarr and Jellyfin run in separate containers, mount the same host library path into Jellyfin so it can read the exported files.

Example:

• Headendarr writes to a host path such as /srv/media/tic-library
• mount that same host path into Jellyfin
• then add the relevant subdirectories to Jellyfin as libraries

services:
  headendarr:
    image: ghcr.io/headendarr/headendarr:latest
    volumes:
      - type: bind
        source: /srv/media/tic-library
        target: /library
        bind:
          selinux: z
...
  jellyfin:
    image: ghcr.io/jellyfin/jellyfin:latest
    volumes:
      - type: bind
        source: /srv/media/tic-library
        target: /library
        bind:
          selinux: z

Steps

In Headendarr:

1. Enable Generate STRM files on the VOD category you want to expose.
2. In Users, make sure one of the streamer users has the required VOD access configured and has Create VOD .strm Files enabled.

In Jellyfin:

3. Add a new media library:
   1. Use Movies for paths under /library/<username>/Movies/...
   2. Use Shows for paths under /library/<username>/Shows/...
4. Point Jellyfin at the relevant exported category path, for example:
   1. /library/myuser/Movies/curated-movies/
   2. /library/myuser/Shows/curated-shows/
5. Review the library settings before saving:
   1. Make sure Save artwork into media folders is disabled.
   2. Disable all trick-play image options:
      1. Enable trickplay image extraction
      2. Extract trickplay images during library scan
      3. Save trickplay images next to media
   3. Disable all chapter image extraction options:
      1. Enable chapter image extraction
      2. Extract chapter images during library scan
6. Save and let Jellyfin scan the library.
